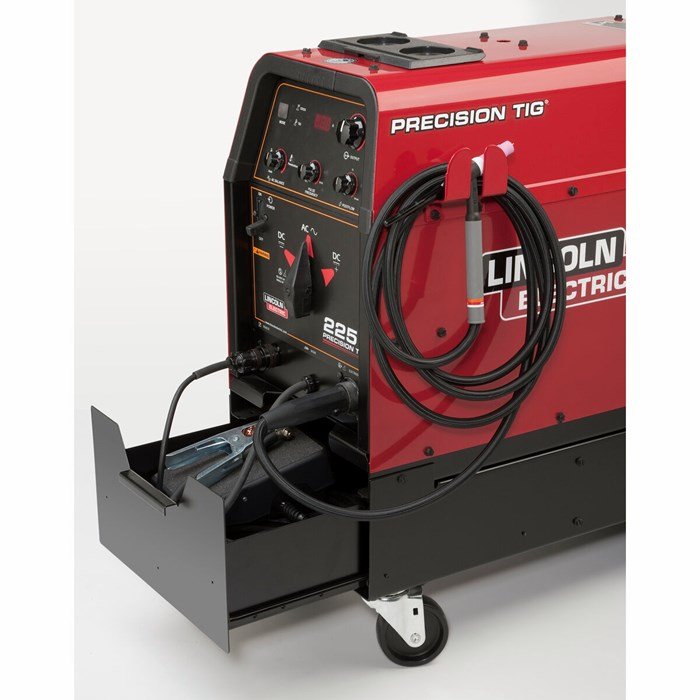

Lincoln Precision TIG 225 TIG Welder Ready-Pak w/Cart
Get the widest operating range in its class (5 to 230 amps) with the durable Precision TIG 225. Experience enhanced starting, optimal arc stability and accomplish more precise welds and crater fills with our patented Micro-Start™ II technology. The 115V receptacles enable you to power a water cooler or other power tools. Ideal for small auto and fabrication shops and vocational training schools.
Get the widest operating range in its class (5 to 230 amps) with the durable Precision TIG 225. Experience enhanced starting, optimal arc stability and accomplish more precise welds and crater fills with our patented Micro-Start™ II technology. The 115V receptacles enable you to power a water cooler or other power tools. Ideal for small auto and fabrication shops and vocational training schools.
Get the widest operating range in its class (5 to 230 amps) with the durable Precision TIG 225. Experience enhanced starting, optimal arc stability and accomplish more precise welds and crater fills with our patented Micro-Start™ II technology. The 115V receptacles enable you to power a water cooler or other power tools. Ideal for small auto and fabrication shops and vocational training schools.
-
- Torch Parts Storage Compartment
- Torch Hanger
- 10 ft. (3.0 m) Work Cable & Clamp
- Removable Lift Eye
- 9 ft (2.7 m) Input Power Cord with NEMA 6-50P Plug
- NEMA 6-50R Receptacle
- TIG Procedure Guide
- GTAW (TIG) Handbook
- PTA-17 150 Amp TIG torch with 1 pc. Cable
- 12 ft (3.6 m) Ultra-Flex™ Cable
- Twist Mate Adapter
- 3/32 in (2.4 mm) 2% Ceriated Tungsten
- Collet & Collet Body
- 7/16 in (11.1 mm) Alumina Nozzle
- Long Back Cap
- Gas Regulator with Hose
- Foot Amptrol with 25 ft (7.6 m) Cable Assembly (K870)
- Understorage Cart (K2348-1) -
Simplicity
- Easy-to-use operator interface - select mode, polarity and begin welding. When welding aluminum, AC Auto Balance® automatically provides for the optimal mix of cleaning
and penetration.
Adjust for any situation: cleaning, penetration and pulse
- When welding thicker material requiring increased penetration, or when requiring increased cleaning action to break through heavy oxide layers, bypass AC Auto Balance and adjust manually for full control.Enable the TIG pulser feature to minimize material distortion from excessive heat input. The TIG pulser can also help moderate filler metal deposition for consistent bead appearance.
Superior stick welder
- Also offers outstanding stick welding capabilities, including the use of up to 5/32 in. (4.0 mm) electrodes - even with Fleetweld® 5P+ (E6010).- Easy-to-use operator interface-select mode, polarity and weld
- AC Auto-Balance® automatically adjusts for the optimal mix of cleaning and penetration when welding aluminum
- Enable the TIG pulser to minimize material distortion from excessive heat input
- Offers outstanding stick welding capabilities with up to 5/32 in. (4.0 mm) electrodes
- Experience enhanced starting, optimal arc stability, and accomplish more precise welds with our patented Mirco-Start™ II technology -
Dimensions (H x W x D) - 31.2 in x 19.8 in x 38 in (794 mm x 503 mm x 966 mm)
Net Weight - 261 lbs (118.39 kg)
Max Rating - 230
Input Voltage - 208/230
Input Current - 40% Duty Cycle: 61/55A, 60% Duty Cycle: 52/47A
Input Hertz - 60
Input Power - 208/230/1/60
Input Phase - 1
Mode Icon - CC
Output Range - 5-230A Max OCV: 75V
Polarity - AC/DC
Rated Output - 130A/40%, 110A/60%
Application - Automotive, Brewery, Distillery, General Fabrication, Maintenance & Repair, Marine Applications, Marine Fabrication & Repair, Pharmaceutical Equipment, Power Plants, Repair Welding, Shipbuilding
Warranty - 3 Years
